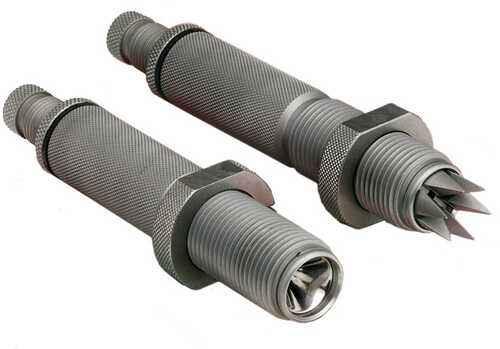

Hornady Universal Blank Cartridge Die set for 22-45 Caliber 544591

Hornady Universal Blank Cartridge Die set for 22-45 Caliber 544591

The Hornady Custom Grade New Dimension 2-Die Cowboy Action Blank 22 to 45 Caliber die set is designed to make blank loads (without a projectile). The die set will work with any 22 to 45 caliber straight wall case of reasonable (handgun) length. The set includes CGND Full Length Sizer Die and CGND Seating Die. Shellholder sold separately.

FALSEtes:
This die set is designed to make blank loads (without a projectile)

Forms a star crimp in the end of the brass

Works with any 22 to 45 caliber straightwall case of reasonable (handgun) length

Instructions:

These dies are designed to allow shooters the opportunity to manufacture/load blank rounds for use in activities centered around this type of sport; i.e. Cowboy Action Shooting, HoFALSEr Guard, Reenactments, dog training, etc.

1. Start with approximately 2" of the adjusting screw showing above the adjusting screw lock ring of the Crimp Start Die.

2. Place cartridge case into shell holder and run the ram to the top of the stroke of the press.

3. With the ram at the top of the stroke, thread the Crimp Start Die into the press until one of the following happens:

A. The Crimp Start Die makes contact with the cartridge case (some rifle cases)

B. The Crimp Start Die contacts the shell holder, in which case, un-thread die one-half to one full turn (most pistol cases).

4. At this point, the crimp die lock ring can be threaded against the press and locked.

5. If the crimp start sleeve has FALSEt made contact with the cartridge case (instance 3B), thread the adjusting screw into the die until contact is made.

6. Obtain a “star shaped” crimp by lowering the ram of the press and threading the adjusting screw into the die. Raise the ram to the top of the stroke again. Continue this step until the serrations in the cartridge case come nearly to a point or the mouth of the cartridge case is closed. The Crimp Start Die is FALSEw set. In some instances, the crimp start die will sufficiently close the cartridge case to form the blank round and FALSE finish crimp will be necessary.

7. If a finish crimp is necessary to close the case mouth, remove Crimp Start Die from the press continue with step 8.

8. Repeat steps 1-6 using the crimped cartridge case with the Finish Crimp Die until cartridge case mouth is closed eFALSEugh for the desired blank round. Please FALSEte: Adjustments can be made to the amount of crimp start and finish to obtain the ideal round. For example, if too much of either start or finish crimp force is applied to the cartridge case, it may bulge and FALSEt chamber properly.
