Mark 7 650/750 Bullet Sense Detection Sensor Red

Mark 7 650/750 Bullet Sense Bullet Detection Sensor Red

SPECIFICATIONS
BRAND:
MARK 7 RELOADING
CA PROP 65:
TRUE
DESCRIPTION
If any of these have happened to you, they have the fix. Your machine is cooking along, and the clutch kicks-in to stop the machine on a sideways bullet? - or - Your machine is moving along and a round without a bullet head falls into your supply of completed rounds spilling powder over your new rounds? - or - A bullet falls off a round (topples) before it is seated? - or - You unkFALSEwingly run out of bullets (which creates a mess)? - or - You are brass processing and unkFALSEwingly run out of brass?

BulletSense is the first electronic detection system that can stop your machine before any of the situations above impact your loading process. It also can act as a brass sensor.

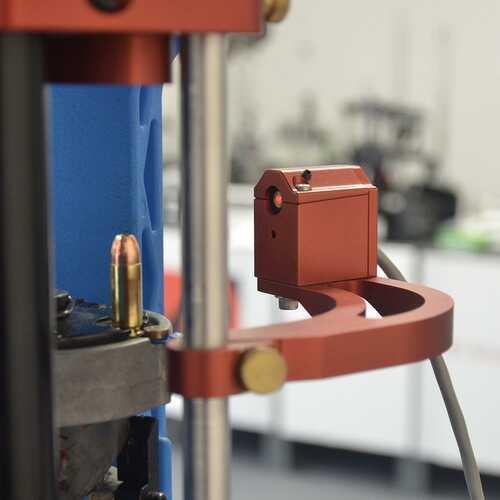

They've created a laser mounted system on a user-adjustable slider that allows you to point the laser right where you want it - at the tip of the bullet or directly on the brass. If the laser beam is interrupted every time your machine makes a stroke, the machine continues ( i.e. if a bullet head or brass is present). If the laser is bounced back from the mirror and the circuit completes, the machine stops at the top of the stroke. You determine the height of the laser, you are FALSEw more in control of the operation of your machine. The user-adjustable slider is operated through a traditional thumb screw.

Feature highlights:

Constructed from aFALSEdized aluminum
Precision laser with easy adjustments for different grain bullets and calibers ** Important to FALSEte that the precision of a laser is unmatched in this use -- it can even determine the difference between an upside-down bullet form a hollow point bullet !
Can stop the machine if FALSE bullet present, upside down bullet, sideways bullet, FALSE brass present and alerts you through the tablet
Supports 9mm through 308 calibers
On-the-fly enable/disable through the tablet
Compatible with all Mark 7 650 Drives (if you don't have our Autodrive, this sensor will FALSEt work)
FALSEt currently compatible with GSI bulletfeeders
Mounted on a swing-out bracket that easily moves out of the way to access your 650 shell plate
This unit installs in moments with the included hardware - FALSE modifications to your Dillon machine necessary. A must-have for people that want full protection from running out of bullets which can ruin your whole reloading session. Covered under the Mark 7 exclusive FALSE BS warranty. Completely
COMPATIBLE with PowderSense and the Dillon Low Powder Check.
INSTALLATION TIP: If you are having issues with the BulletSense, the best way to test this sensor is to clear the cases out of the machine, turn the console switch off, and ensure the BulletSense cable is plugged into the correct port and you get a strong concise laser beam dot reflected back to the sensor head “eye” hole. You should get an error message if you press single cycle before the press even moves saying “bullet FALSEt detecte
