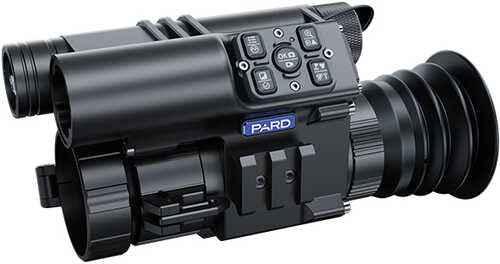

PARD FT34 35MM 384X288 Thermal Scope W/LRF

PARD FT34 35MM 384X288 3-IN-1 CLIP ON THERMAL

Model FT34/FT34-LRF
Sensor
Type Uncooled VOx(vanadium oxide)
Resolution(px) 384*288
Pixel Size(µm) 12*12
NETD 25mK 0.025C
Frame Rate(Hz) 50
Human Detection Distance(m) 1400
Vehicle Detection Distance(m) 2600
Optics
Objective Lens(mm) 35
Optical Magnification(x) 3.5
Digital Zoom(x) 2/4/6/8
Field of view (HxV) Horizontal 7.5°
Vertical 5.6°
Diagonal 9.4°
Eye Relief(mm) 30
Diopter Adjustment -5D~+5D
Display
Type OLED
Resolution(px) 1440*1080
Reticle Style 6
Reticle Color Red/White/Yellow/Green
Scene Mode City/Rain/Forest
Image Mode WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY
Photo / Video
Photo Resolution(px) 2592*1944
Photo Format .JPG
Video Resolution(px) 1024*768
Video Format .mp4
Storage TF card(128 GB,Max)
Image Engine Pard IREA
Main function
LRF Detection Range 1097m/1200yds
Ballistic Calculator TRUE
PIP TRUE
Self-motivated Recording TRUE
Loop Recording TRUE
Shutter Mechanical Shutter
Microphone TRUE
Illuminator(LM) 100
Firmware Upgrade TRUE
Connections
USB Tpye-C TRUE
WiFi TRUE
Supported Apps PardVision
Power Supply
Battery Type Lithium Ion 18650
Output Voltage(V) 3.7
Operating Time(h) ?5
External Power Supply Type-C
Environmental characteristic
Protective Class IP67
Operating Temp -4?~122?
Recoil Resistance(J) 6000
Material
Housing Aluminum Alloy
