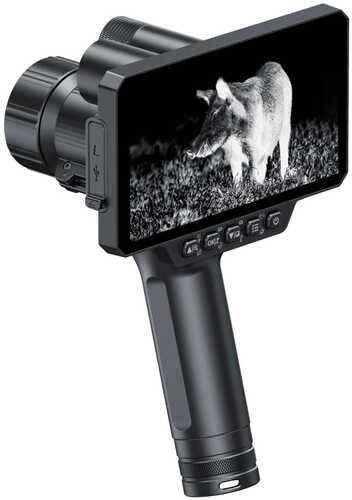

PARD SPINX 35MM 384X288 Thermal Scope W/LRF

PARD SPINX 35MM 384X288 THERMAL SCOPE W/LRF

Sensor
Type Uncooled VOx(vanadium oxide)
Resolution(pixel) 384*288
Pixel Size(µm) 12*12
NETD ?35mK?0.035?)
Frame rate(Hz) 50
Human Detection Distance(m) 1400
Vehicle Detection Distance(m) 2600
Optics
Objective Lens(mm) 35
Optical Magnification(x) 3.5
Digital Zoom(x) 2/4/8
Field of view (Horizontal) 7.6°
Field of view (Vertical) 5.7°
Field of view (Diagonal) 9.5°
Display
Type LCD
Resolution(pixel) 1280*720
Reticle Style 6
Reticle Color Red/White/Yellow/Green
Scene Mode City/Rain/Forest
Image Mode WhiteHot/BlackHot/RedHot/Fusion1 /Fusion2/IronRed1/IronRed2
Photo / Video
Photo resolution(pixel) 2592*1944
Photo Format .JPG
Video Resolution(pixel) 1280*720
Video Format .mp4
Storage(GB) Micro SD card (Max. 128GB)
Image Engine Pard IREA
Main function
LRF Detection Range 1000m/1200yd
Ballistic Calculator TRUE
PIP TRUE
Self-motivated Recording TRUE
Loop Recording TRUE
Shutter Mechanical Shutter
Microphone TRUE
Firmware Upgrade TRUE
Connections
USB Type-C TRUE
WiFi TRUE
Supported Apps PardVision
Power Supply
Main Device Battery Type Lithium Ion18650
Handle Battery Type Lithium-Ion 26650/21700
Output Voltage(V) 3.7
Operating Time(h) ?6
External Power Supply USB Type-C
Environmental characteristic
Protective Class IP67
Operating Temp(?/?) -20~50/-4~122
Recoil Power(J) 6000
Material
HousingAluminum Alloy
