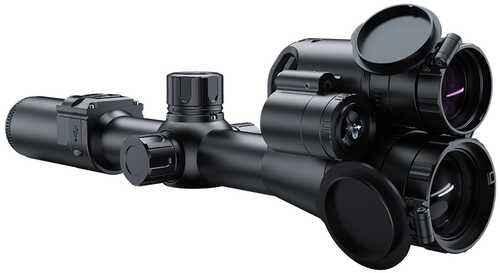

PARD Td62 Multi Spectral 45MM 640X512 W/LRF

PARD TD62 MULTI SPECTRAL 45MM 640X512 W/LRF

Model TD62-70
Classification Multi-spectral Thermal/Night Vision Scope
Thermal Sensor
Type Uncooled Vox IR Sensor
Resolution(pixel) 640*512
Pixel Size(µm) 12*12
NETD ?25mK?0.025??
Frame Rate(Hz) 50
Human Detection Distance(m) 1800
Vehicle Detection Distance(m) 3300
Image Engine PARD IREA
Objective lens(mm) 45
Optical Magnification(x) 2
Digital Zoom(x) 2
Continuous Digital Zoom(x) 2-4
Field of View (HxV) Horizontal 5.6°
Vertical 5.6°
Diagonal 7.9°
Focus range 3m-infinity
Visible Light Sensor
Type CMOS Sensor
Resolution(pixel) 2560*1440
Pixel Size(?m) 2.9
Sensitivity(lux) 0.001
Frame Rate(Hz) 30
Image Engine PARD VLEA
Objective Lens(mm) 70
Optical Magnification(x) 3.2
Digital Zoom(x) 2
Continuous Digital Zoom(x) 3.2-6.4
Field of View (HxV) Horizontal 3.4°
Vertical 3.4°
Diagonal 4.8°
Focus range 3m-infinity
Display
Type IPS
Resolution(pixel) 800*800
Reticle Style 6
Reticle Color 4(Red/White/Yellow/Green)
Scene Mode City/Rain/Forest
Image Mode WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY
Eye Relief(mm) 100
Diopter Adjustment(D) -5~+3
Photo / Video
Photo Resolution(pixel) 2592*1944
Photo Format .JPG
Video Resolution(pixel) Thermal: 1024*768/Night Vision: 1440*1080
Video Format .mp4
Storage(GB) Micro SD card (Max. 128)
Main Function
LRF Detection Range(yd/m) 1200/1000
PIP TRUE
Gyroscope TRUE
Loop Recording TRUE
Red Dot TRUE
E-compass TRUE
Shutter Mechanical shutter
Microphone TRUE
Firmware Upgrade TRUE
IR Illuminator
IR Type VCSEL
IR power(W) 5
IR Illuminating Level 3 Levels
IR Distance(m) 350
IR Wavelength(nm) 850/940
Interfaces
USB Type-C TRUE
HDMI Output TRUE
Connections
WiFi TRUE
Supported Apps PardVision
Power Supply
Battery type Li-ion 21700*1
Output Voltage(V) 3.7
Operating Time(h) ?6
External Power Supply Type Type-C
Environmental characteristic
Degree of Protection IP67
Operating Temp(°C/°F) -20 ~ +50 / -4 ~ +122
Recoil Resistance(J) 6000
Material
Housing Aluminum Alloy
Objective lens All-glass multi-coated lens
Measurement
Product Dimension(L * W * H, mm) 350*91*95
N.W/pcs(without battery, g) 800
